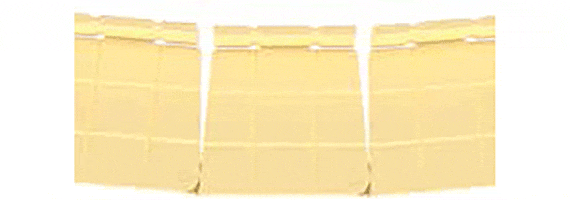

Universal gliding element, made from the proven iglidur® J

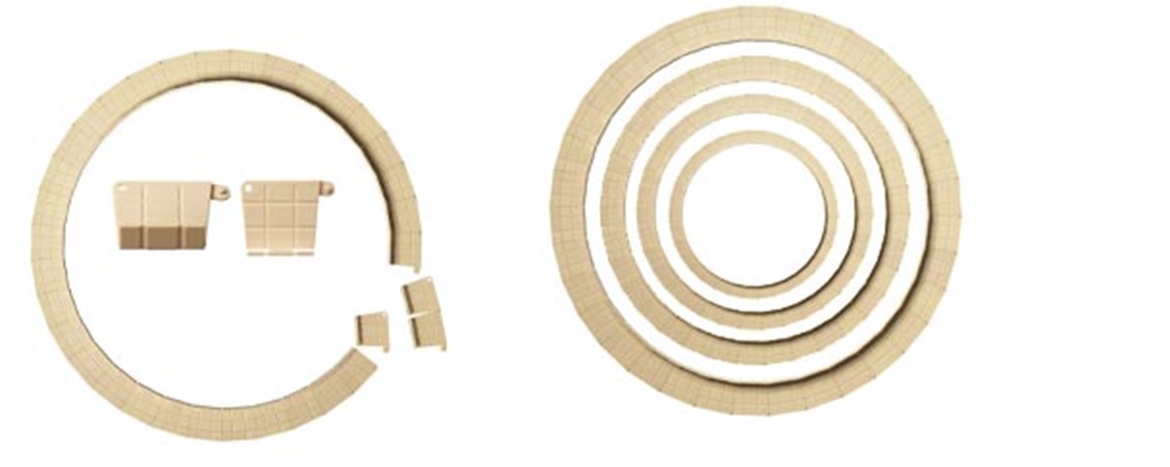

Customize your own slewing ring tables starting at 500 mm diameters and larger
Lubricant free
Maintenance-free
wear-resistant
Rugged
Resistant to corrosion
| General features | |
|---|---|
| Density | 1,49 g/cm3 |
| Colour | yellow |
| Max. moisture absorption at 23 °C and 50 %r.h. | 0,3 Wt.-% |
| Max. water absorption | 1,3 Wt.-% |
| Mechanical properties | |
|---|---|
| Max. permissible static surface pressure (+20 °C) | 35 MPa |
| Shore D hardness | 74 |
| Physical and thermal properties | |
|---|---|
| Max. long term application temperature | 90°C |
| Max. short term application temperature | 120°C |
| Lower application temperature | –50° |
| Electrical properties | |
|---|---|
| Surface resistance | >1012 Ω |
| Ordering number | ||
|---|---|---|
| JRS-500S/45S | по запросу |
