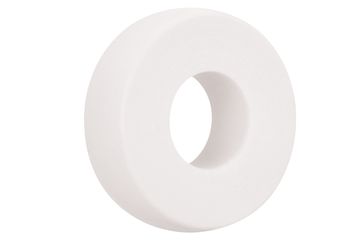

A350 spherical insert bearing, machined, high chemical resistance

igubal A350EM – the endurance runner with high chemical resistance

The A350EM spherical insert bearing, machined from bar stock, can be used in both pillow block bearings and flanged mounted bearings. Manufactured from the high-performance plastic iglidur A350, it is characterised by its excellent wear resistance and temperature resistance.

Thanks to the embedded solid lubricant, no additional lubrication is required, which makes operation in damp environments particularly advantageous. Our spherical insert bearings are easy to install and offer a cost-effective and lightweight alternative to a conventional metal ball bearing.

Housing compatibility

In our shop, you will also find flange mounted bearings and pillow block bearings with plastic housings, which have a positive effect on the total weight of your system.

igubal A350 spherical insert bearing

• Temperature range [°C]: -100 to +180, short-term +210
• Shaft diameter: 17mm - 50mm
• Housing sizes: P/F/FL 203 - 210
• Advantages: Maintenance-free, lubrication-free, long service life, resistant to dust and dirt, vibration-dampening, very good chemical resistance, low moisture absorption, resistant up to a radiation intensity of 2 · 10²Gy
• Dimensional series: Based on DIN 626-1 (rolling bearing - radial deep groove ball bearing with spherical outer ring surface and extended inner ring - Part 1: Insert bearing)
• Application environment: High loads, acidic environments, low coefficients of friction at high temperatures
