- For heavy duty applications
- PVC outer jacket
- Flame retardant
- UV-resistant
- Oil resistant (following DIN EN 50363-4-1)
- Guarantee up to 4 years
igus-icon-lieferzeitCFSOFT2.02.03
(3x0.25)C
:

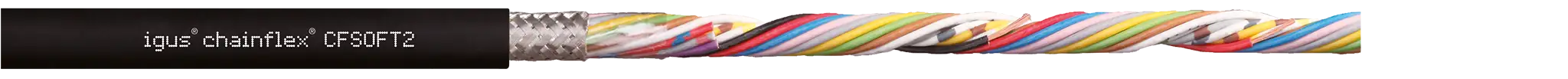

chainflex® control cable CFSOFT2
Typical application areas
- For heaviest duty applications and especially small radii down to 5 x d, Class 7
- Slight oil influence, Class 2
- Especially soft cable design, for reduced restoring forces
- Especially for very short, very fast applications with small radii and restricted installation space, Class 1
- Pick and place machines, automatic doors, cleanroom, very fast handling machines
Guaranteed service life for this series according to guarantee conditions
Further information: chainflex® guarantee
* Higher number of double strokes possible - use the service life calculation function on this page.
Further information: chainflex® guarantee
| Double strokes* | 10 million | 15 million | 20 million |
|---|---|---|---|
| Temperature, | R min. | R min. | R min. |
| from/to [°C] | [Factor x d] | [Factor x d] | [Factor x d] |
| +5 / +15 | 6.8 | 7.5 | 8.5 |
| +15 / +60 | 5 | 6 | 7 |
| +60 / +70 | 6.8 | 7.5 | 8.5 |
Certificates and standards
