readycable® bus cable suitable for B&R iX20CA3E61.xxxx, basic cable PUR 12.5xd

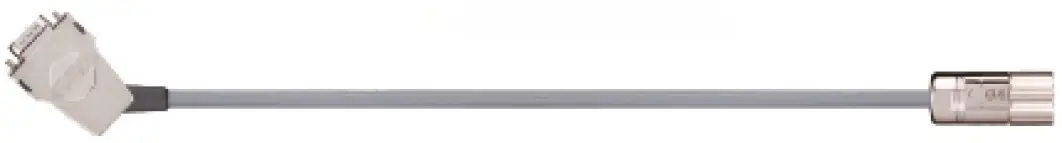

MAT9730101 product image
igus-icon-lupe

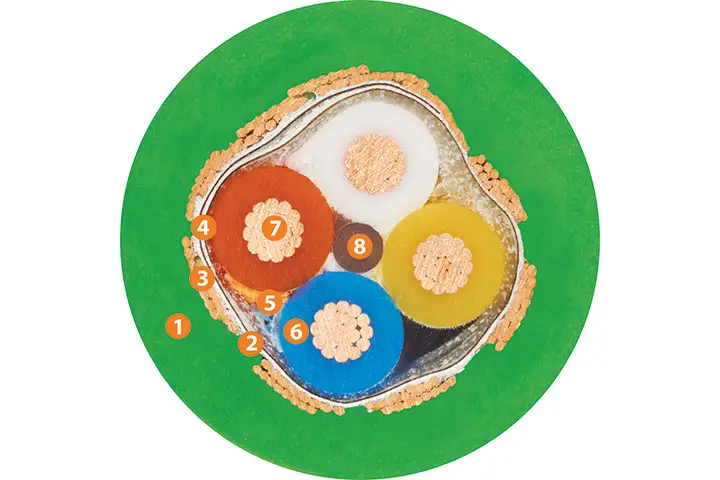

1. Pressure extruded PUR mixture 2. Flexible strong braiding made of tinned copper wires 3. Plastic fleece 4. Aluminium-coated plastic foil 5. Plastic foil 6. Plastic blind element 7. Mechanically high-quality TPE mixture (according to bus specification) 8. Fine-wire strand in especially flexible version made of bare copper wires<br />
igus-icon-lupe
MAT9730101 product image
igus-icon-lupe
1 of 3
MAT9730101 product image
1. Pressure extruded PUR mixture 2. Flexible strong braiding made of tinned copper wires 3. Plastic fleece 4. Aluminium-coated plastic foil 5. Plastic foil 6. Plastic blind element 7. Mechanically high-quality TPE mixture (according to bus specification) 8. Fine-wire strand in especially flexible version made of bare copper wires<br />
MAT9730101 product image
• PROFINET
• Star quad structure
• For energy chain applications
• PUR outer jacket
• Outer jacket colour yellow-green
• Bend factor 12.5xd
• Overall shield
• Notch-resistant
• Oil-resistant & flame-retardant
• Coolant-resistant
• Free from PVC and halogen
• 10 million double strokes guaranteed
  • Guarantee up to 4 years
    • igus-icon-lieferzeitMAT9730101
    InfoInfoigus-icon-infoigus® GmbH defines cable length as entire length inlcuding connectors or open harnessing.
