drylin® E stepper motor with connector, NEMA 34

The power pack in the large installation size

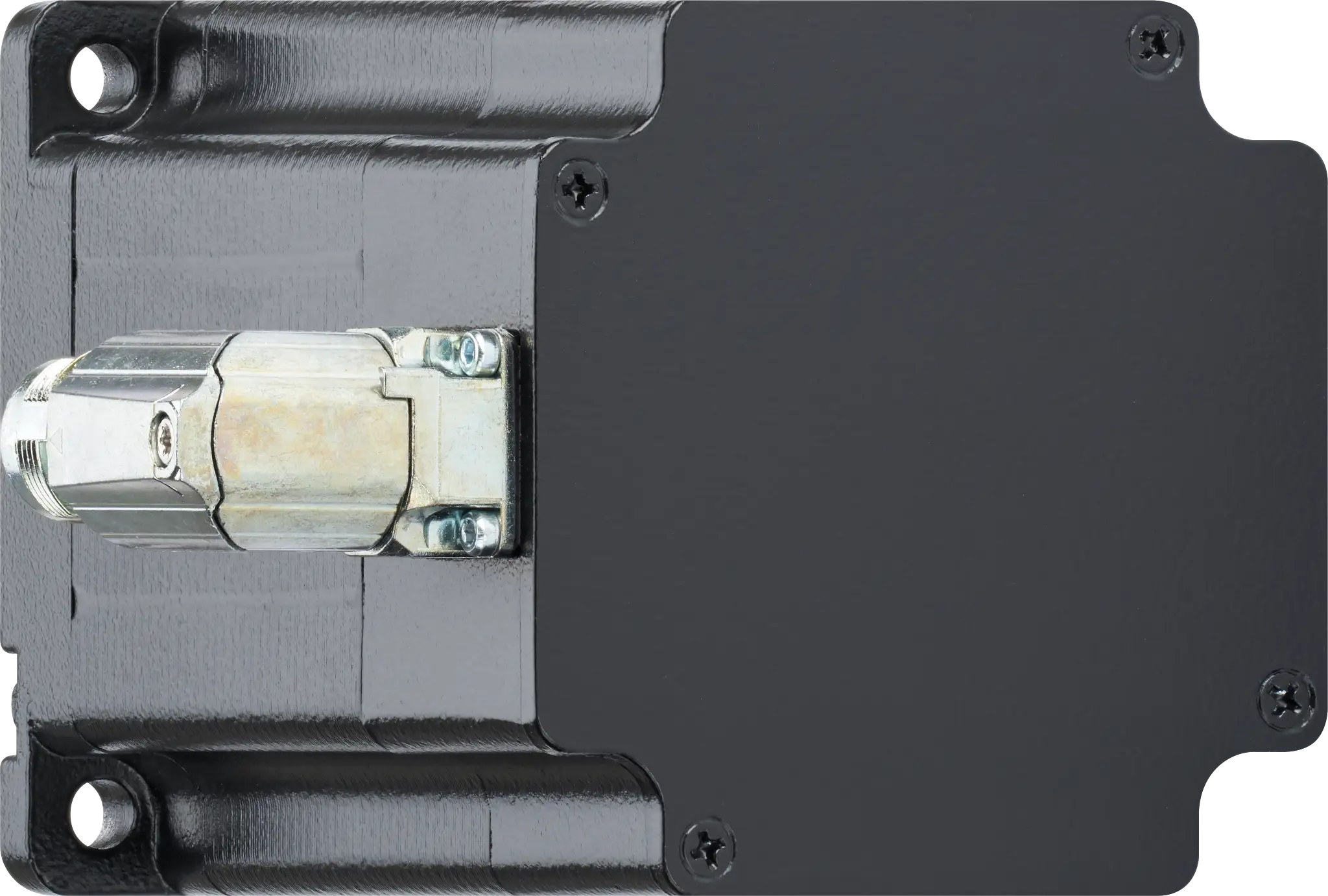

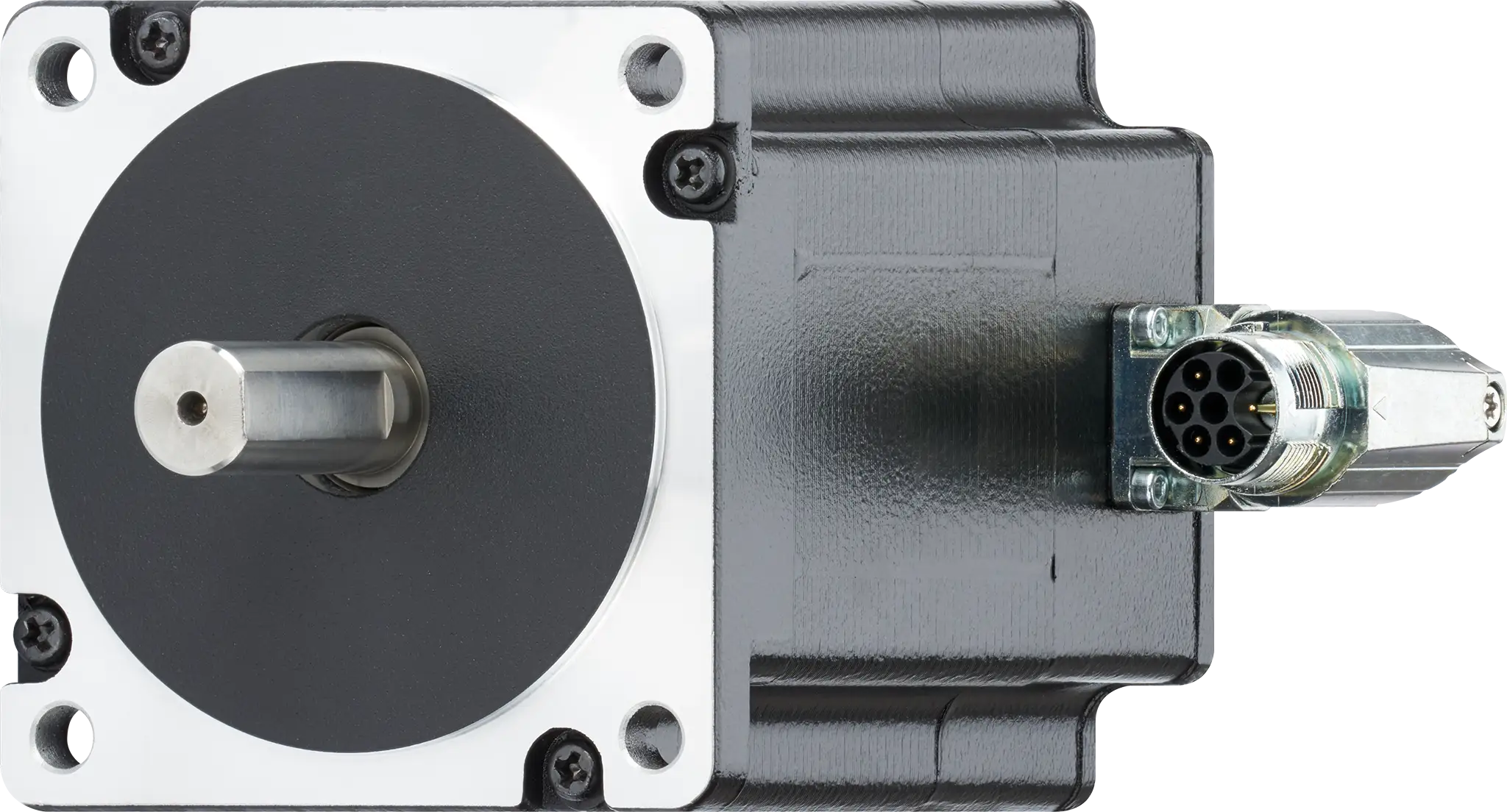

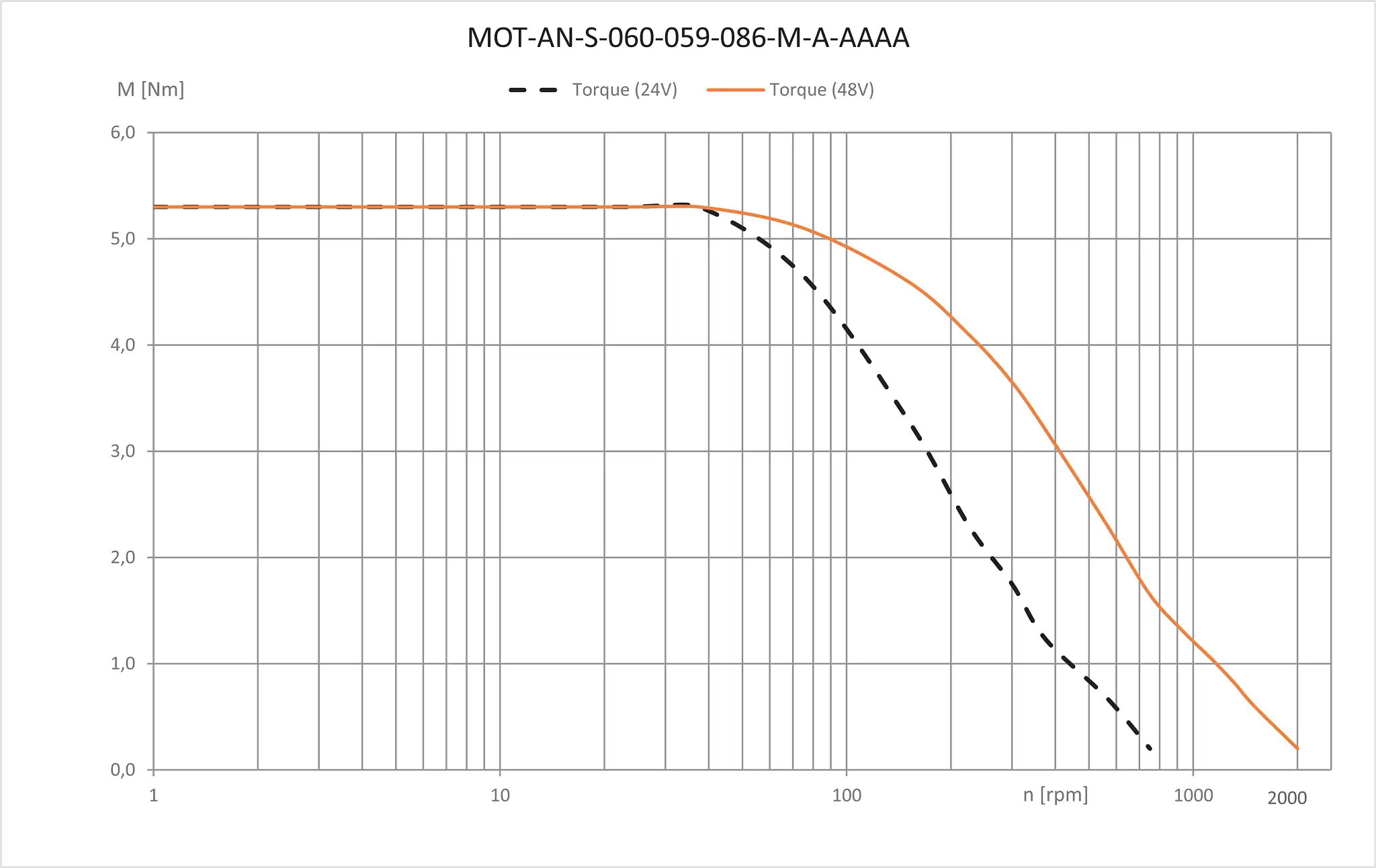

The largest stepper motor in the product range impresses with its extremely high torque in the lower speed range. The stepper motor works precisely, is robust, cost-effective and easy to control. It is used in automation, e.g. CNC machine adjustment or robots. The motor is connected via a metric M12(17) connector. This is installed directly on the rear part of the motor housing. The advantage of this is that the motor housing achieves an IP65 degree of protection. In addition, the motor has a brake. This is installed in the motor. The connections for this are in the M17 motor connection.
