Energy chains for double-girder travelling cranes

In contrast to single-girder travelling cranes, double-girder travelling cranes or double-girder gantry cranes are designed for significantly higher lifting loads. The cranes usually bridge large hall areas and therefore often require rapid movement of the goods to be transported.
This requires robust energy chains, guide troughs and cables for high travel speeds and accelerations, which can also be easily retrofitted into existing crane systems and allow quiet movement.

Lightweight, robust and cost-effective: energy chain solutions for double-girder travelling cranes

guidlite plus guide trough

Consists of plastic components
Offers high guiding stability
Made of chemical-resistant EG material
Quieter and cheaper than comparable metal troughs

Learn more about guidelite guide troughs

Energy chain system E4.1

More stability with smaller dimensions
High service life even in abrasive ambient conditions
Modular energy chain system for easy handling

Learn more about the E4.1 energy chain

Energy chain E4.1R

Choice of rolling or gliding design
For use on cranes with lower additional loads
Noise and vibration reduced with less drive energy required

Learn more about the E4.1R

chainflex: For moving applications

Cable for use in energy chains
Wide range of products
Designed for enormous speeds and accelerations, long travels and the most adverse environmental conditions

Learn more about chainflex cables

Condition monitoring with i.Sense

Monitoring the energy chain on the crane
In the event of problems, the software can initiate an emergency stop to prevent damage
Increases safety during operation

Learn more about i.Sense

Predictive maintenance with i.Cee

Reports maintenance requirements on the energy chain at an early stage and before damage occurs
Avoids expensive plant downtime
Increases operational reliability

Learn more about i.Cee

Super-Alu guide troughs

Seawater-resistant aluminium profile
In the Basic and Heavy Duty modular system
Very easy and universal installation
Glide strips to protect against abrasion

Find out more about guide troughs

chainfix clamps CFXL

Relief for heavily stressed cables
3.5 times higher force absorption than standard clamps
Easy to retrofit

Learn more about chainfix clamps

Floating moving end

To compensate for long travels
Small, light and inexpensive
Compatible with isense EC.P
Can be used for various energy supply systems

Find out more about floating moving ends

Sophisticated engineering made easy

Complete set in just three clicks

e-spool energy chain - The alternative to a cable drum without slip ring

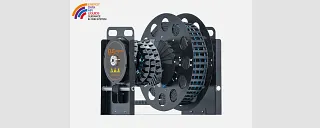

e-spool combines two different energy supply systems in a unique way: A standard energy chain is guided by a roller, providing the correct length and tension of the energy supply system through an integrated retaining spring. In the home position, the energy chain is completely rolled up to save space. The twisterband connects the roller with the shaft end block, serving as an interface to the permanently installed cables.

More information

Liftband energy chain - vertical applications up to 13m

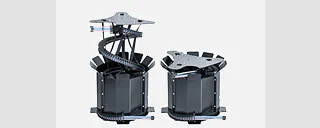

liftband - modular, quiet, space-saving - vertical guidance of energy, data and media. With the liftband, high vertical applications can be implemented, which have a lot of space available horizontally but only allow for low system heights.

More information

e-drum energy chain

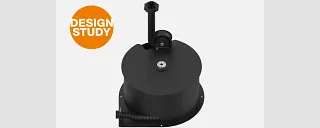

A modular system allows flexible adaptation to the application in question. The slip ring-free modular system of the e-drum allows the user to create a compact and durable guidance and drum-reeling system for energy, data, air and liquids.

More information

System comparison

Energy chain systems instead of festooning, motorised cable reels and busbar systems

Energy chains systems instead of festooning

energy chain system instead of festooning
Protect and safely guide energy chain cables in windy conditions and fluctuating temperatures. Downtimes can be minimised as a result.

More about the festooning alternative

Energy chain systems instead of motorised cable reels

energy chain system instead of motorised cable reel
Without slip ring on long travel distances. Guide all media safely in one system. Travel distances up to 1,000 metres.

More about the motorised cable reel alternative

Energy chain systems instead of busbar systems

energy chain system instead of busbar system
Fail-safe routing of data, energy, liquids and air in an energy chain system. For tight, compact spaces and fast aisle travel.

More about the busbar system alternative

User stories: Energy chains successful in double-girder travelling cranes

Heat and dust: Energy supply under adverse conditions

In Thyssen Krupp's Duisburg hot rolling mill, a slab transport crane from BANG Kransysteme GmbH & Co. KG is responsible for handling the slabs at the interface between the steelworks and the rolling mill – in heat and dust. The supply of energy and signals to the trolley and cab is ensured by heavy duty igus energy chains supplied pre-fitted as basic readychain systems.

Go to complete user report

50% more storage space thanks to pre-fitted energy supply systems

Kranservice Herz mainly designs bridge and gantry cranes up to a load capacity of 100t and spans of up to 40m. For a new project – an automatic crane system for loading stainless steel pipes – special environmental conditions were met. Due to the structural conditions on site, the operator required an extremely low clearance height. The solution consisted of pre-fitted energy chains that save 50% storage space.

Go to complete user report

Robust energy chains for harsh environmental conditions in foundries

These three cranes are used to transport containers of molten metal in a foundry. Each crane has a lifting capacity of 100 tonnes. A hot environment coupled with extremely high levels of contamination on the crane from moulding sand, graphite and metallic dust is the challenge here for the energy supply system. By using our E4/4 series roller e-chains, it was possible to achieve permanently trouble-free operation in the harsh environment.

Go to complete user report

Manufacturer relies on guidefast system for easy installation of e-chains

The manufacturer Piedmont Hoist and Crane in the USA opted for the convenient guidefast modular system, which is now standard in the "double-girder crane systems" segment: The guide trough for attaching the energy chain to the side of the crane girder impresses with its quick and simple installation. And the design is also an additional aspect for users.

Go to complete user report
