iglidur® I190: easy-to-process filament for stable, abrasion-resistant components

Now with an even longer service life – up to 50 times the abrasion resistance of ABS

The iglidur® I190 is a new, easy-to-process all-rounder filament with enhanced mechanical rigidity serving a wider range of sliding and wear applications.

iglidur® I190 is also very well suited to the design of multi-material slide components because it combines very well with very rigid materials.

The filament can be easily processed on commercially available 3D printers such as the Ultimaker S5.

iglidur I190 in the filament shop

Tech up

Flexural strength 80 MPa, best iglidur® filament
for regular 3D printers
Excellent service life – 50 times the
abrasion resistance of ABS
Lubrication-free and maintenance-free
Can be processed easily on commercially available 3D printers
Application temperature: 90 °C (after component
tempering)

Cost down

No
minimum order quantity, no tool costs
Available as a filament and in 3D printing service

Proof

I190 wear-resistance and flexural strength values test

Sustainability

No lubrication necessary
Can be recycled
3D printing: Low material requirements, since there is no waste or sprue
igus® supports the circular economy for
plastics and is investing in chemical recycling

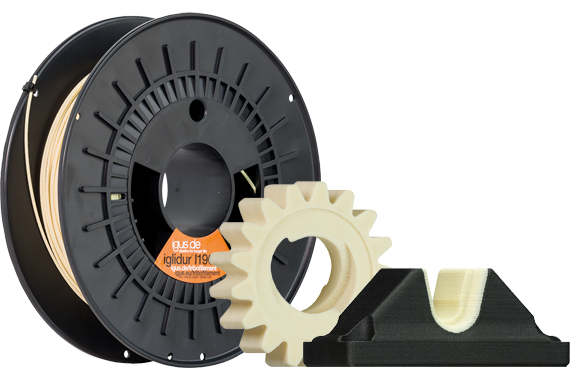

3D print components of iglidur® I190

Buy iglidur I190 filament online

flexural strength test report (pdf)

Tested! iglidur® I190's wear and friction test

3D-printed bearings of standard plastics compared to iglidur® I190

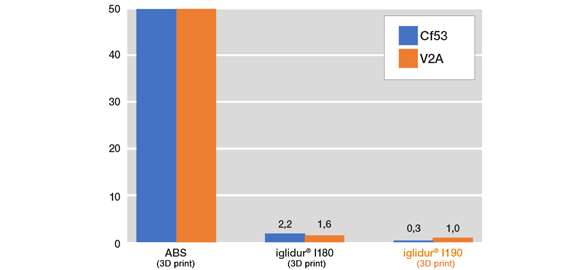

Pivoting wear, p = 1MPa; v = 0.01m/s

Vertical axis: wear rate [µm/km]

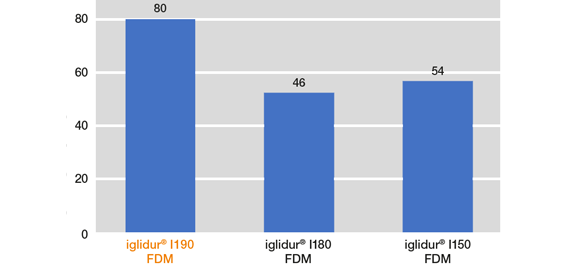

Flexural strength, printed flat

Vertical axis: flexural strength [MPa]

More information on 3D printing at igus

3D printing at igus

3D printing material: filaments and laser sintering powder

Learn more about our services, processes, filaments, laser sintering powder, rapid tooling, rapid prototyping and much more.

Industrial 3D printing

Free sample box

Order the free sample box with samples of filaments, components and post-processed specimens and see for yourself the quality and special features of our 3D printing products.

Free sample box

Wear resistance put to the test

Wear-resistant plastics from the 3D printer - to keep this promise, we regularly test our products regarding friction, load and service life in our in-house test lab.
