Closed energy chain for dirt and swarf protection

Closed energy chain for dirt and swarf protection

In harsh environments, cables require special protection against dust, swarf, dirt and other external influences. The best protection is provided by the closed energy chain from igus - also known as energy tubes or e-tubes.

Typical industries and applications: Material handling, woodworking machinery, in all areas exposed to dirt and swarf ...

Discover the closed energy chains now

What are closed energy chains?

Compared to open energy chains (diagram 1), closed energy chains (diagram 2) are completely closed. Closed energy chains made of the igus material igumid G can be used at temperatures up to +120°C and those made of the material igumid HT for hot swarf up to +850°C. Laboratory tests and numerous references have made igus closed energy chains a safe cable protection for welding robots and machine tools for over 20 years. Discover below the best closed energy chains that protect cables from dust, dirt, sludge, compost, wood, textile fibres, paper dust, grinding paste, coolants, glass dust, glass splinters, coal dust, sand, etc.

Open energy chains

Diagram 1: Open energy chains

Closed energy chains (energy tubes)

Diagram 2: Closed energy chain (energy tubes)

Closed energy chains for reliable cable protection

Energy tube R2.1

Closed energy chain series R2.1

Cost-effective and strong swarf protection with openable lid

  • Inner heights: 26 to 75mm
  • Available in two versions:
    • Openable in the outer radius from both sides
    • Openable in the inner radius from both sides
  • Large inner height and cost-effective
  • Quiet operation due to built-in brake
  • Smooth design with no interfering edges
To the products

RX energy tube

Closed energy chain series RX

Extremely swarf-resistant for the direct swarf area

  • Inner heights: 42 to 73mm
  • Lid removable in the outer radius
  • Rounded contour allows swarf to bounce off easily
  • IP tested by TÜV NORD CERT GmbH
To the products

Energy tube E2 R

Closed energy chain series E2 R

Good swarf protection at high speeds

  • Inner height: 25 to 45mm
  • Lid removable in the outer radius
  • Quiet operation due to small pitch of the chain links
To the products

Energy tube E2 R100

Closed energy chain series E2 R100

Cost-effective swarf protection

  • Inner heights: 21 to 50mm
  • Lid openable in the inner radius from both sides
  • Cost-effective protection against dirt and swarf
To the products

Energy tube R4.1L

Closed energy chain series R4.1L

Save costs, time and weight

  • Inner heights: 31 to 48mm
  • Lid openable in the inner and outer radius from both sides
  • Completely closed
  • Integrated "brake" for quiet operation
  • Undercut design for optimum lateral stability
  • Highly customisable to the application
  • Optimum price-performance ratio
  • 30% lightweight and 80% faster assembly than comparable series
  • Double stop-dog system and large pin/bore connection for high force absorption
To the products

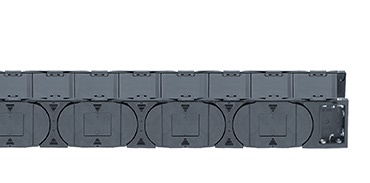

Energy tube R4.1

Closed energy chain series R4.1

A series for almost every application

  • Inner heights: 28 to 108mm
  • Lid removable in the inner and outer radius
  • Completely closed
  • For particularly demanding applications
  • Undercut design for optimum lateral stability
  • Double stop-dog system and large pin/bore connection for high force absorption
  • High thrust on long travels and for long unsupported lengths
  • Noise-dampening "brakes" and noise dampers as an option
  • Integrated "brake" for quiet operation
To the products

Energy tube R4/light

Closed energy chain series R4/light

Large inner heights with low mass

  • Inner heights: 56 to 80mm
  • Lid removable in inner and outer radius
  • Completely closed
  • Reduced thickness of the side panels and thinner crossbars
To the products

Energy tube zipper

Closed energy chain series zipper

Swarf protection around small installation space

  • Inner heights: 10,3 to 32mm
  • Lid on a belt on the outer radius
  • Tubular version for light dirt impact
  • Quiet operation due to small pitch of the chain links
  • Also available as a closed "tube version"
  • iF Design Award for zipper design
To the products

triflex R

triflex R

Movements in three axes - completely closed

  • Inner height (fillable): 10 to 46.8
  • Ideal for demanding movements in all axes
  • TRC version also protects against dirt and swarf as it is completely enclosed.
  • High torsion resistance
  • Easy to shorten and lengthen
  • Defined torsion stop-dog and minimum bend radius
  • Many other versions available
  • iF Design Award 2004, 2007 & 2013
To the products
triflex® R

Chainge recycling programme for energy chain
Make your contribution to reducing plastic waste and improving recycling in the industry.

To the recycling programme
Cable CF890

CF890 cable
For flexible use, iguPUR outer jacket, oil-resistant, flame-retardant

To the cable CF890
