EC.PP trough-integrated path measurement system

provides EC.PR position data

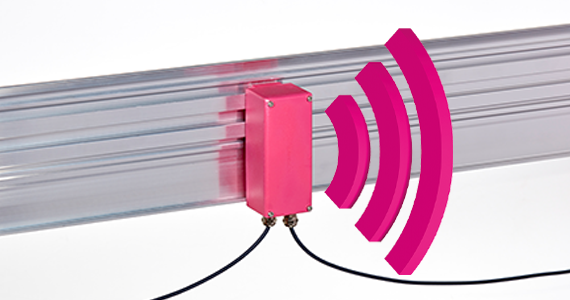

Small transmitters connected by cable are installed at 50cm intervals on the outer guide trough side links. The so-called beacons transmit their positions to a single antenna fixed to the floating moving end. The system uses the relative position of the beacons to the antenna and the transmitted position to calculate the trolley position. It is then sent to the customer control system via Profinet. This provides information for the EC. PR push/pull force monitoring system. It also positions the crane trolley precisely. The repeatability envisioned is indicated to be +/-5mm!

Tech up

Path measurement system for connection to the position-dependent push/pull measuring system EC. PR
Usable as a primary trolley positioning system - eliminates the need for a second measuring system.
Connected beacons (see diagram) submit position information to moving antenna.
Repeat accuracy: +/-5mm
Transmission of position data to customer PLC control via Profinet

Cost down

Average of four man-days of installation time saved because the second measurement system is eliminated¹

Proof

has been tested and documented at BTG (experts for crane positioning systems)
Q2 2020 Test set-up at 200-m field test facility in the igus® laboratory for dynamic energy transmission systems, the world's largest

Sustainability

Faster decommissioning of uneconomic technologies due to saved installation time
Recycling of installed energy chains with the igus chainge programme free of charge
