e-dispenser for shore-power supply
... saves costs and protects the environment ... e-dispenser
In 2017, we presented the e-chain dispenser, a complete solution for a semi-automated shore power supply. This was a project-specific special solution that had to be (at least partially) redesigned for each new application in the harbour.
Based on this idea and the experience we have gained from numerous projects in the field of shore power supply, we have redesigned the e-dispenser. The aim is to supply modular energy supply solutions for various shore power applications for medium and low voltage. The e-dispenser module can be used variably in combination with various systems (e.g. cranes, structures, mobile transfer systems).
e-dispenser 2.0
Easy to use in existing systems
#modular

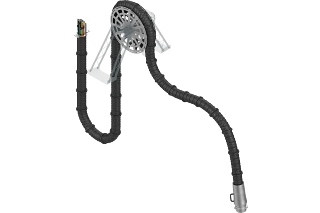

The e-dispenser is the conveyor unit for the TRHD.142.300.0, which can be integrated into various customer structures as well as into igus' own dispenser solutions. With the e-dispenser, the TRHD.142 including charging connector can be safely lowered onto the vehicle to be charged - whether on land or water. More than twice the breaking strength with the TRHD.142.300.0 compared to the next smaller 125 size.
Tech up
- Safe, electrical procedure of TRHD.142.300.0
Cost down
- Easy integration into existing structures/systems/installations
Proof
- The dispenser principle is already being used successfully in many shore power applications
Sustainability
- Less raw material required due to partial repair option instead of total replacement
e-dispenser 1.0
Tech up
- Modular and compact system
- Modular system: ready-to-install triflex R e-chains® energy supply unit incl. cables & connectors; optional: drive; optional: additional steel structure
- Flexible in terms of extension length and installation options
- Fail-safe due to cable protection using triflex R energy chain TRC.125*
- Defined minimum bend radius*
*Compared to other commercially available systems with an open multicore cable
Cost down
- Single cores are more cost-effective than special multicore cables
- Less space required due to the use of single cores (due to smaller minimum bend radius*)
- In the event of damage to a single core, the entire cable package does not have to be replaced*
- Standard components instead of project-specific customised solutions
- Time-saving, semi-automated connection of the power supply
Proof
- Test setup at igus
Sustainability
- Supply via shore power, ship's diesel engine does not have to be used for power generation
- No exhaust fumes and no noise on site
- Have your energy or drag chain recycled at the end of its life cycle in the igus Chainge® recycling programme. No matter which manufacturer.
e-dispenser - How it works
4-year guarantee - Full of confidence!
The e-dispenser module is supplied as a ready-to-install plug & play solution:
- Conveyor unit with triflex R energy chain, chainflex cable, connector, junction box, harnessing - all tested and with a 4-year guarantee.
- We offer a standard energy supply unit that is developed and designed as a complete solution, customised to the situation on site and the respective customer requirements.
- Also for other industrial sectors, such as e.g. mechanical engineering, robotics and welding applications, the e-dispenser module is an interesting energy supply solution. In all cases, users benefit from standardised - and therefore proven and cost-effective - energy supply components.
